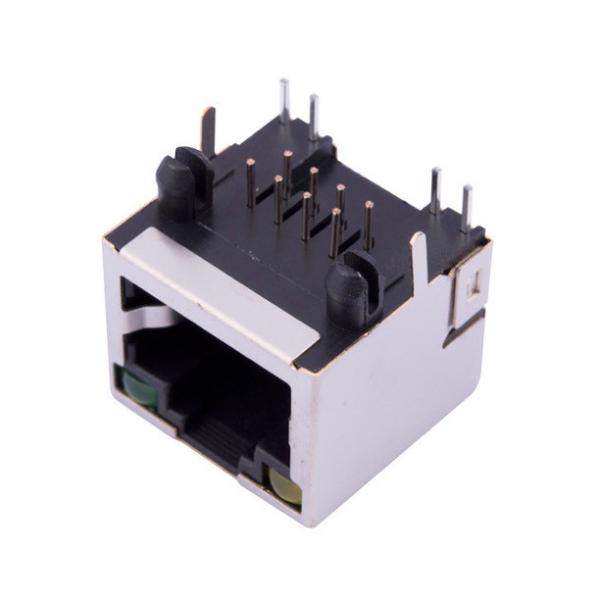

IEEE 802.3 Standard Tab Up Magnetic RJ45 Jack

Brand Name : B-TOP

Model Number : Magnetic RJ45 Jack

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000 pcs/day

Delivery Time : 10 work days

Packaging Details : Negotiate

Port : 1*1

LED : Green/Green

Plastic : PBT

EMI Tab : Yes

Gold-plating : 6u"

Speed : Gigabit

Type : RJ45

Application : PCB

Contact Now

100 / 1000 Base -TX Single Port (1x1) Tab-Up Magnetic Module RJ45 Jack

Product Information
Electrical Specifications:
1.Inductance :
350uH,MIN @100KHZ,0.1Vrms,8mA DC Bias
2.Turns Ratio :
P1-2:J1-1=1CT:1+/-3%
P3-6:J3-6=1CT:1+/-3%
3.Insertion Loss :
1~100MHZ -1.0dB MAX.
4.Return Loss :
1~10MHZ -20dB MIN .Load 100 OHMS
10~30MHZ -16dB MIN .Load 100 OHMS
30~60MHZ -12dB MIN .Load 100 OHMS
60~80MHZ -10dB MIN .Load 100 OHMS
5.Common Mode Rejection :
1~50 MHZ -30dB MIN
50~100MHZ -20dB MIN
6.Cross Talk :
1~100MHZ -30dBMIN
7.Hi-Pot Test :
1500Vrms 60sec. @PCB Side to Cable Side



Electrical Performance :

* Meets or exceeds IEEE 802.3 standard for 100Base-T.
* 350 uH minimum OCL with 8 mA bias current.
* High performance for maximum EMI suppression.
* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
* Operating temperature range: 0 0C to +70 0C.
* Storage temperature range: -40 0C to +85 0C.

Material Specifications :

* Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.
* Contact Area: Phosphor Bronze, Gold Plated,6U~50U Optional.
* PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel
* Housing: Reinforced FR PA66-B30 UL94V-0.
* Metal Shell: Copper Alloy, Nickel Plated

* Case: Phenolic, UL94V-0 Black..



Main use

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...

Electrical Specifications at 25℃

Insertion
Loss
dB max		 Return Loss dB min Crosstalk(dB TYP) Common Mode Rejection
(dB TYP)		 Hipot(Vrms)
1-100MHz 1-30MHz 30-60MHz 60-80MHz 1-30MHz 30-60MHz 60-80MHz 1-50MHz 50-150MHz
-1.0 -18 -16 -12 -40 -35 -30 -30 -20 1500

More Single Port Tab UP RJ45 Jack with Magnetic

Part Number Size Speed Schematic LED EMI Spring Gold Plating
BT50S(27-11)F4-03A-P213-B52 21.35*15.9*13.5 100M F4-03A G/Y No 6u"
B50S(27-12)F4-239-P123-B52 21.35*15.9*13.5 100M F4-239 Y/G Yes 6u"
B50S(27-16)F4-117-P223-B52 21.35*15.9*13.5 100M F4-117 G/Y Yes 6u"
B50S(27-19)F4-03A-P223-B52 21.35*15.9*13.5 100M F4-03A G/Y Yes 6u"
B50S(27-22)F4-03A-P213-B52 21.35*15.9*13.5 100M F4-03A G/Y No 6u"
B50S(28-07)G8-85-P223-B52 21.35*15.9*13.5 Gigabit G8-85 G/Y Yes 6u"
B50S(28-09)G8-96-P023-B52 21.35*15.9*13.5 Gigabit G8-96 None Yes 6u"
B50S(28-16)G8-09-P623-B52 21.35*15.9*13.5 Gigabit G8-09 GO/Y Yes 6u"
B50S(28-20)G8-96-P323-B52 21.35*15.9*13.5 Gigabit G8-96 G/G Yes 6u"
B50S(28-21)G12-95-P626-B52 21.35*15.9*13.5 Gigabit G12-95 GY/G Yes 50u"
B50S(28-27)G8-140-P623-B52 21.35*15.9*13.5 Gigabit G8-140 GO/Y Yes 6u"
B50S(28-29)G12-95-P223-B52 21.35*15.9*13.5 Gigabit G12-95 G/Y Yes 6u"
B50S(28-31)G8-164-P223-B52 21.35*15.9*13.5 Gigabit G8-164 G/Y Yes 6u"
B50S(28-39)G8-174-P623-B52 21.35*15.9*13.5 Gigabit G8-174 G/GY Yes 6u"
B50S(28-40)PF6-258A-P223-B52 21.35*15.9*13.5 100M PF6-258A G/Y Yes 6u"
B50S(28-42)G8-98-P223-B52 21.35*15.9*13.5 Gigabit G8-98 G/Y Yes 6u"
B50S(28-43)G8-09-P223-B52 21.35*15.9*13.5 Gigabit G8-09 G/Y Yes 6u"
B50S(28-45)G8-107-P123-B52 21.35*15.9*13.5 Gigabit G8-107 Y/G Yes 6u"
B50S(28-48)G8-208-P623-B52 21.35*15.9*13.5 Gigabit G8-208 GO/Y Yes 6u"
B50(29-01)F4-100-P213-B52 25.4*16.2*13.5 100M F4-100 G/Y No 6u"
B50(29-02)F5-190-P213-B52 25.4*16.2*13.5 100M F5-190 G/Y No 6u"
B50(29-03)F4-24-P213-B52 25.4*16.2*13.5 100M F4-24 G/Y No 6u"
B50(29-06)FP4-198-P613-B52 25.4*16.2*13.5 100M FP4-198 GO/Y No 6u"
B50(29-07)F4-24-P222-B12 25.4*16.2*13.5 100M F4-24 G/Y Yes 6u"
B50(29-15)F4-100C-P214-B52 25.4*16.2*13.5 100M F4-100C G/Y No 15u"
B50(29-18)F4-03B-P613-B52 25.4*16.2*13.5 100M F4-03B GR/GR No 6u"
B50(29-30)F4-17-P223-B52 25.4*16.2*13.5 100M F4-17 G/Y Yes 6u"
B50(29-33)F5-190-P213-B52 25.4*16.2*13.5 100M F5-190 G/Y No 6u"
B50(29-31)F4-240-P223-B52 25.4*16.2*13.5 100M F4-240 G/Y Yes 6u"
B50(29-35)F5-83-P213-B52 25.4*16.2*13.5 100M F5-83 G/Y No 6u"
B50(29-36)F4-24A-P223-B92 25.4*16.2*13.5 100M F4-24A G/Y Yes 6u"
B50(29-53)F4-263-P223-B52 25.4*16.2*13.5 100M F4-263 G/Y Yes 6u"
B50(29-59)F4-100-P613-B92 25.4*16.2*13.5 100M F4-100 G/GY No 6u"
B50(29-60)F4-24-P113-B52 25.4*16.2*13.5 100M F4-24 Y/G No 6u"
B50(30-08)F4-262-P003-C52 25.4*16.2*13.5 100M F4-262 None No 6u"
B50(31-02)F4-42A-P003-B52 25.4*16.2*13.5 100M F4-42A None No 6u"
B50(36-06)F5-190-P013-B52 25.4*16.2*13.5 100M F5-190 None No 6u"
B50(02-02)G8-87-P213-B52 25.4*16.2*13.5 Gigabit G8-87 G/Y No 6u"
B50(02-05)G8-27-P212-B52 25.4*16.2*13.5 Gigabit G8-27 G/Y No 6u"
B50(02-06)G8-86-P613-B52 25.4*16.2*13.5 Gigabit G8-86 G/GO No 6u"
B50(02-09)G8-86-P613-B52 25.4*16.2*13.5 Gigabit G8-86 GO/Y No 6u"
B50(02-10)G8-91-P613-B52 25.4*16.2*13.5 Gigabit G8-91 GO/Y No 6u"
B50(02-13)G8-09-P213-B52 25.4*16.2*13.5 Gigabit G8-09 G/Y No 6u"
B50(02-19)G8-91-P123-B52 25.4*16.2*13.5 Gigabit G8-91 Y/G Yes 6u"
B50(02-22)G8-91-P614-B52 25.4*16.2*13.5 Gigabit G8-91 GO/Y No 15u"
B50(02-23)G8-120-P223-B12 25.4*16.2*13.5 Gigabit G8-120 G/Y Yes 6u"
B50(02-26)G8-140-P623-B52 25.4*16.2*13.5 Gigabit G8-140 GO/Y Yes 6u"
B50(02-28)G8-140-P023-B52 25.4*16.2*13.5 Gigabit G8-140 None Yes 6u"
B50(02-29)G8-98-P223-B52 25.4*16.2*13.5 Gigabit G8-98 G/Y Yes 6u"
B50(02-30)G8-140-P623-B52 25.4*16.2*13.5 Gigabit G8-140 GO/Y Yes 6u"
B50(02-33)G8-197-P613-B92 25.4*16.2*13.5 Gigabit G8-197 G No 6u"
B50(02-36)G8-91-P623-B52 25.4*16.2*13.5 Gigabit G8-91 GO/Y Yes 6u"
B50(150-07)GP8-15-P622-F52 32.6*16.6*13.5 Gigabit GP8-15 GO/Y Yes 6u"
B50(150-22)G8-12-P322-F52 32.6*16.6*13.5 Gigabit G8-12 G/G Yes 6u"
B50(150-53)GP12-106-P623-F12 32.6*16.6*13.5 Gigabit GP12-106 GO/Y Yes 6u"
B50(150-57)G8-13-P623-F52 32.6*16.6*13.5 Gigabit G8-13 GY/G Yes 6u"
B50(150-58)GP8-15-P623-F12 32.6*16.6*13.5 Gigabit GP8-15 GY/G Yes 6u"
B50(150-60)G8-12-P623-F12 32.6*16.6*13.5 Gigabit G8-12 GY/G Yes 6u"
B50(150-68)GP8-15C-P023-F52 32.6*16.6*13.5 Gigabit GP8-15C None Yes 6u"
B50(150-72)G8-13-P323-F52 32.6*16.6*13.5 Gigabit G8-13 G/G Yes 6u"
B50(150-73)G8-12-P623-F52 32.6*16.6*13.5 Gigabit G8-12 GO/Y Yes 6u"
B50(150-85)GP8-15A-P113-F52 32.6*16.6*13.5 Gigabit GP8-15A Y/G No 6u"
B50(150-88)GP8-15-P623-F52 32.6*16.6*13.5 Gigabit GP8-15 GY/GY Yes 6u"
B50(150-90)GP8-218-P023-B52 32.6*16.6*13.5 Gigabit GP8-218 None Yes 6u"
B50(151-01)F4-27-P622-F12 32.6*16.6*13.5 100M F4-27 GY/Y Yes 6u"
B50(151-02)FP4-150-P622-F12 32.6*16.6*13.5 100M FP4-150 G/GO Yes 6u"
B50(151-03)FP4-150-P623-F12 32.6*16.6*13.5 100M FP4-150 GO/GO Yes 6u"
B50(151-06)F4-243-P223-F52 32.6*16.6*13.5 100M F4-243 G/Y Yes 6u"
B50(152-02)F4-27-P023-F52 32.6*16.6*13.5 100M F4-27 None Yes 6u"

Spectifications

Electrical Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC 4 contacts---500g
Insulation resistance: 500MΩ Min 6 contacts---750g
Withstand voltage: AC 1500Vrms 50Hz or 60Hz 1 Min 8 contacts---900g
Contact resistance: 20mΩ Max 10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
Durability: 750 mating cycles mini
Material
Housing: 1) glass filled PA66(ul 94v-0)
2) glass filled PA46(ul 94v-0)
3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
2) 0.35mm thickness phosphor bronze alloy
selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature: -20℃-70℃, -40℃-85℃
Relative humidity: 70%±10% RH
